MK Robbe ROXXY 2827-35
MK Robbe ROXXY 2827-35
Couldn't load pickup availability

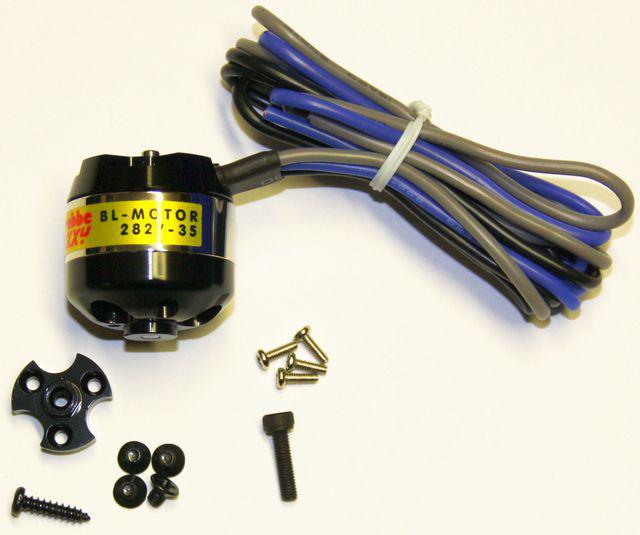

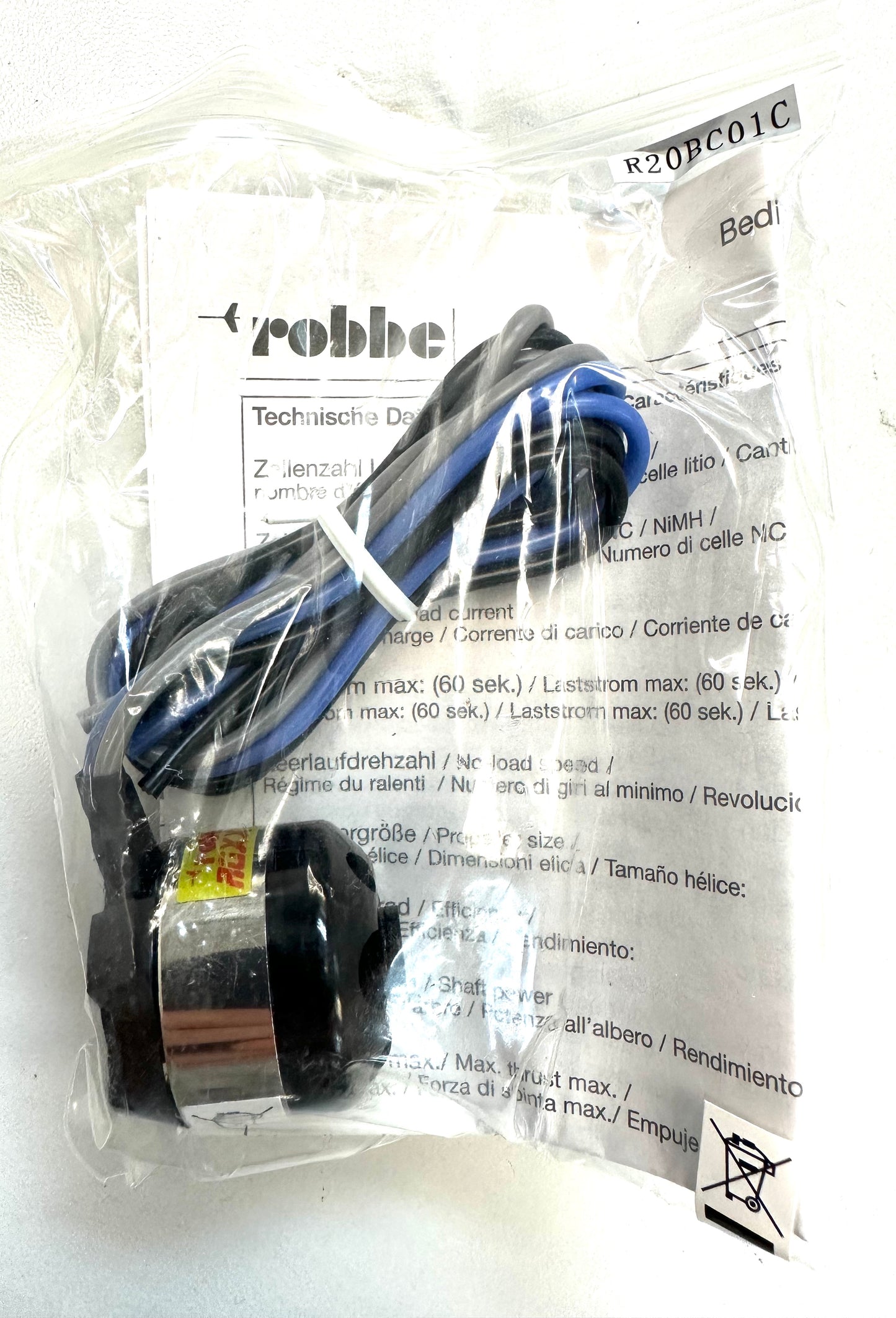

MK Robbe ROXXY 2827-35
In contrast to the 2827-34, this motor has a shortened shaft, which simplifies the mounting of 2 motors on one boom (top/bottom).
Instead of the green/yellow color typical of Roxxy, this motor is black. Furthermore, it has approx. 50cm long motor leads.
Technical specifications
|
Number of cells lithium: |
2-4 |
|
Number of cells NC/NiMH: |
6-10 |
|
load current: |
4-9A |
|
Load current max. (60 sec.): |
10A |
|
Idle speed: |
760 rpm/v |
|
Propeller size: |
8x5…10x5” |
|
Efficiency: |
max 76% |
|
shaft power: |
approx. 110 W |
|
thrust max.: |
approx. 820 g |
|
Total weight (with cable/adapter): |
about 57g |
|
Dimensions: |
28.8x29mm |
|
shaft diameter: |
3.17mm |
Thrust over current characteristic
flight time
How to estimate the flight time of a microcopter with these motors is described here:
direction of rotation
rotate "clockwise" (viewed from above)
Motor connection:
- A = grey
- B = blue
- C = black
rotate "counter" clockwise (viewed from above)
Motor connection:
- A = blue
- B = grey
- C = black
Recommended propeller
-
EPP1045 - Propeller (10 x 4.5") to 4S Lipo
Replacement ball bearings
Specifications in mm (metric) and inches (inch)
The sizes above:Designation: R2 5ZZ
- mm: axis (d) 3,175; Ø outside (D) 7,938; Width (W) 3,571
- inch: axis (d) 0.1250; Ø outside (D) 0.3125; Width (B) 0.1406
- inch: axis (d) 1/8; Ø outside (D) 5/16; Width (B) 9/64
The sizes below:Designation: R2 ZZ
- mm: axis (d) 3,175; Ø outside (D) 9.525; Width (W) 3,967
- inch: axis (d) 0.1250; Ø outside (D) 0.3750; Width (B) 0.1562
- inch: axis (d) 1/8; Ø outside (D) 3/8; Width (B) 5/32
*Pictures and Photos for referene only
